Power Bank CUKTECH PB200U (CCC / CE)

[Requirements for Bringing Power Banks on Board]
According to the announcement of the Civil Aviation Authority of Thailand (CAAT) and the international standard of IATA, the conditions for bringing power banks on board are clearly defined based on their electrical capacity (mAh) as follows:

*Below 20,000 mAh and not exceeding 100 Wh: Unlimited quantity allowed (subject to suitability).
*20,000 - 32,000 mAh and not exceeding 100 Wh: Maximum of 2 units per person allowed.
**Above 32,000 mAh and not exceeding 100 Wh: Prohibited from being brought on board (in all cases).

[Caution]
*Please double-check additional details and requirements with the airline before your trip.
**Do not check in as baggage.** Must be carried on board.

[Note]
*Products with CN.V (CCC) certification support CCC (China Compulsory Certification) standards.
*Products with GB.V (CE) certification support CE (CE marking) standards.

[[Product Highlights]]

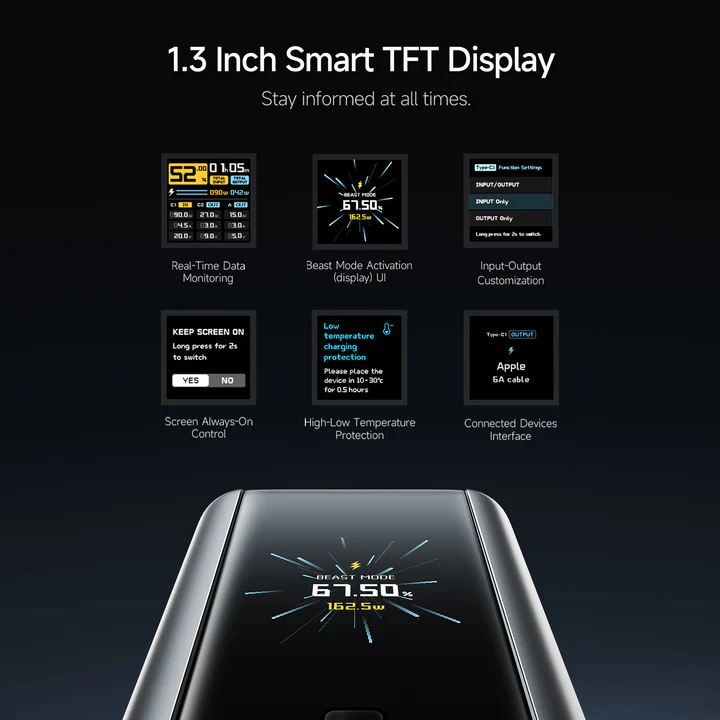

- 1.3-inch TFT display with high resolution of 261PPI
- Displays real-time charging power information
- Displays battery level and charging power
- Allows customization of charging input and output settings
- Allows the display to be turned off during use
- Displays notifications and instructions when the temperature is too high or too low.
- Displays devices currently charging, along with charging cable information.*
*Display is only supported on select devices and charging cables.

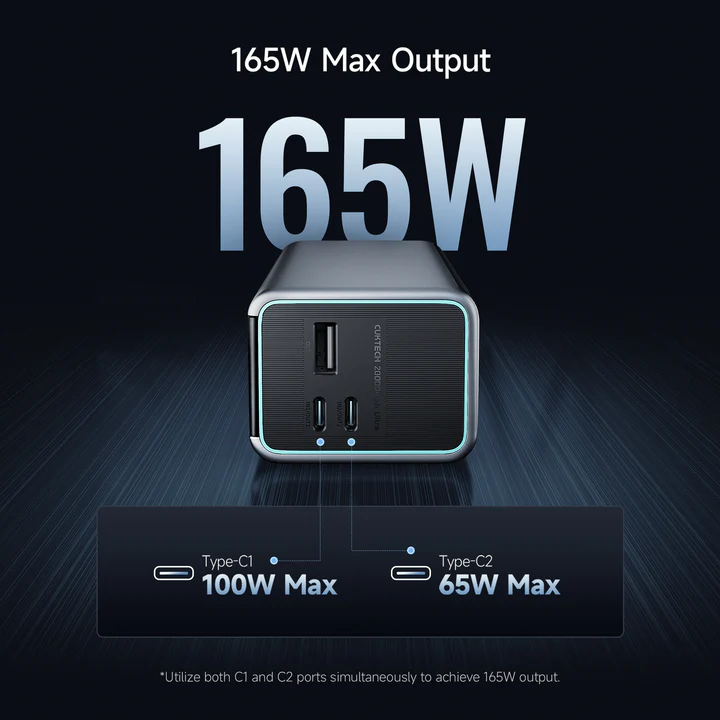

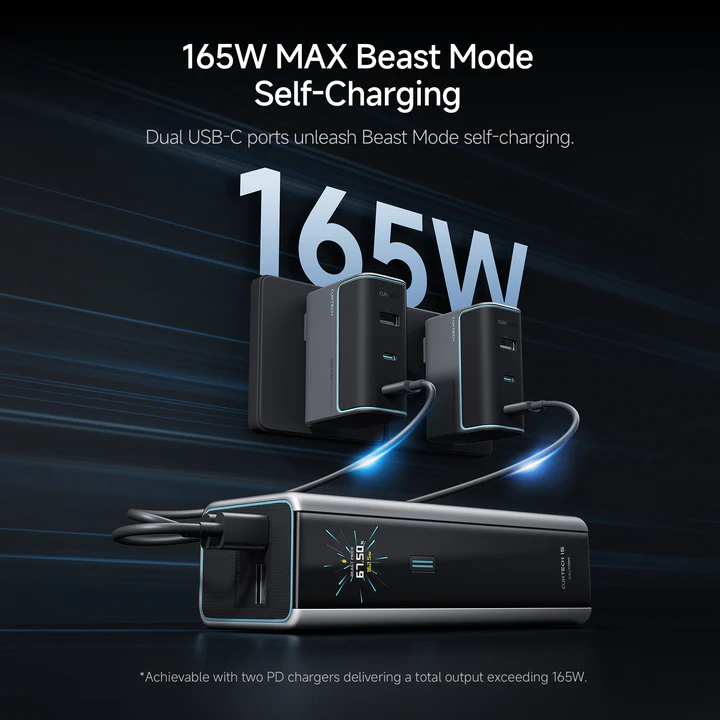

- Input Beast Mode 165W, fully charges from 0-100% in 45 minutes.
- Charges via USB-C1 and USB-C2 ports simultaneously.
- Charges the power bank to 33% battery in just 10 minutes.
- Maximum single port charging power: 140W (USB-C1) and 65W (USB-C2).

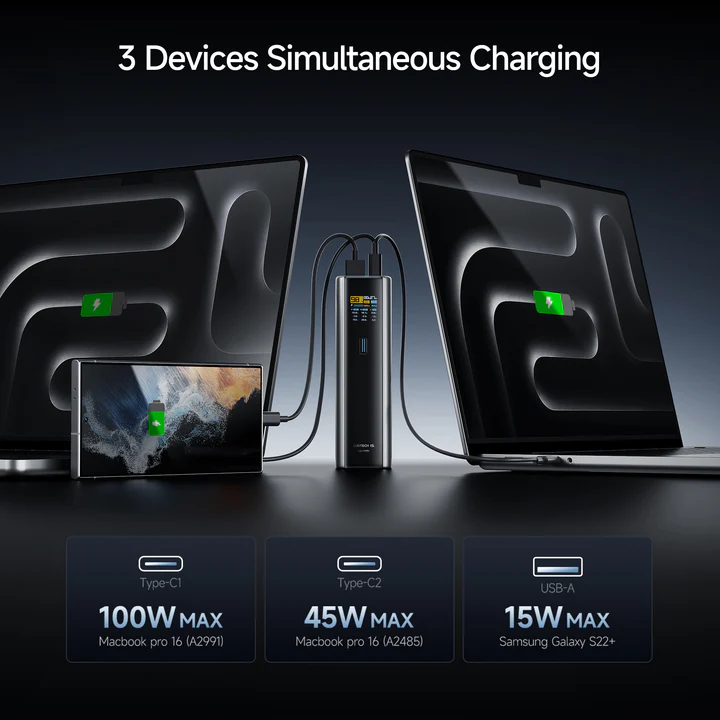

- Supports simultaneous charging of 3 devices with a maximum combined power output of 210W.
- 2 USB-C ports: 120W + 2 USB-C ports: 90W
- 2 USB-C ports: 120W + 33W USB-A port
- 2 USB-C ports: 90W + 33W USB-A port
- 3 USB-C ports: 120W + 65W USB-C port + 33W USB-A port*
* When charging 3 devices simultaneously, the total power output will not exceed 210W.
- Maximum power output per port is up to 140W with PD3.1 technology.
- USB-C1 140W: Fast charging with PD3.1, PPS, QC5, DCP
- USB-C2 90W: Fast charging with PD3.0, PPS, QC5, DCP
- USB-A 33W fast charging with UFCS, QC3.0, FCP, SCP, AFC, and DCP
- PD3.1 140W fast charging technology for smooth and long-lasting performance

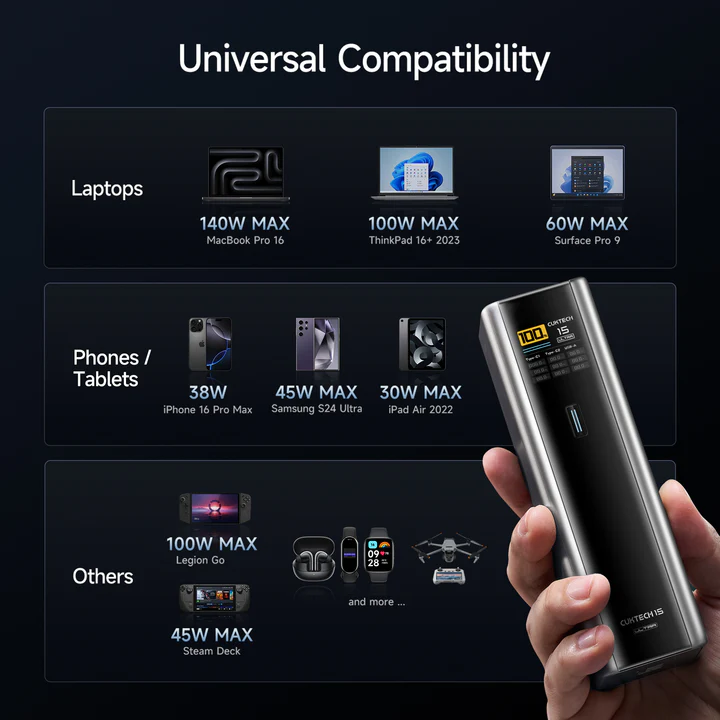

- Charges HP Spectre x360 16 (2024) battery from 0-45% in 30 minutes
- Charges MacBook Pro 16 (M3 Pro) battery from 0-53% in 30 minutes
- Charges RedmiBook Pro 16 (2024) battery from 0-40% in 30 minutes
- Charges SteamDeck (OLED) battery from 0-36% in 30 minutes
- PPS 100W fast charging technology supports Adaptive Fast Charge 2.0
- Charge Honor 100 battery from 0-80% in 30 minutes
- Charge Vivo X100s Pro battery from 0-85% in 30 minutes
- Charge Meizu 21 Pro battery from 0-85% in 30 minutes
- Charge Samsung S24 Ultra battery from 0-62% in 30 minutes
- Charge iQOO 12 Pro battery from 0-72% in 30 minutes
- Charge iPhone 15 Pro Max battery from 0-53% in 30 minutes
- Charge Huawei Mate 60 Pro battery from 0-43% in 30 minutes
- Supports UFCS Protocol for fast charging of various devices.
* Including Huawei, Vivo, Oppo, and other brands that support UFCS.
* Charges iQOO 11 Pro battery from 0-50% in 23 minutes.

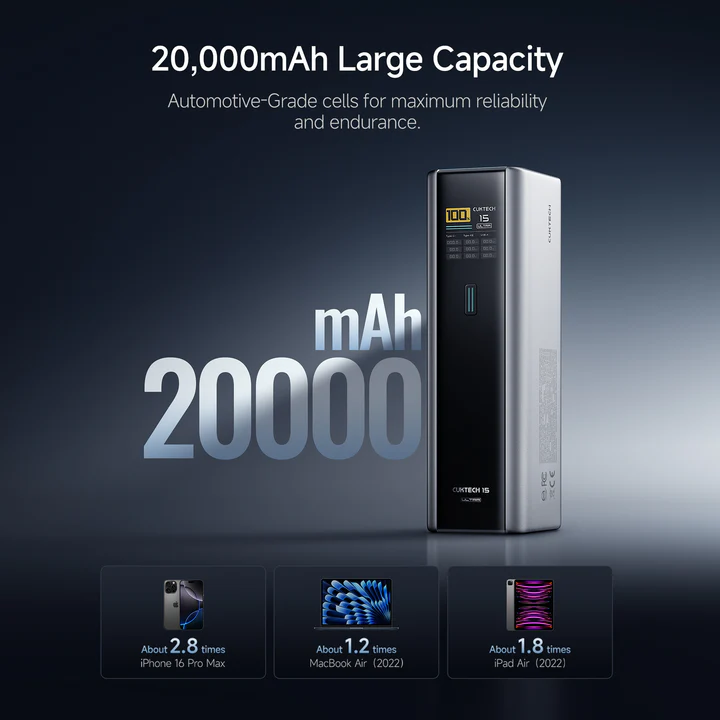

- 20000mAh battery for longer device usage.
- Charges iPhone 15 3.8 times, providing up to 76 hours of usage.
- Charges MacBook Air 1.2 times, providing up to 21.6 hours of usage.
- Charges iPad Air 1.8 times, providing up to 18 hours of usage.

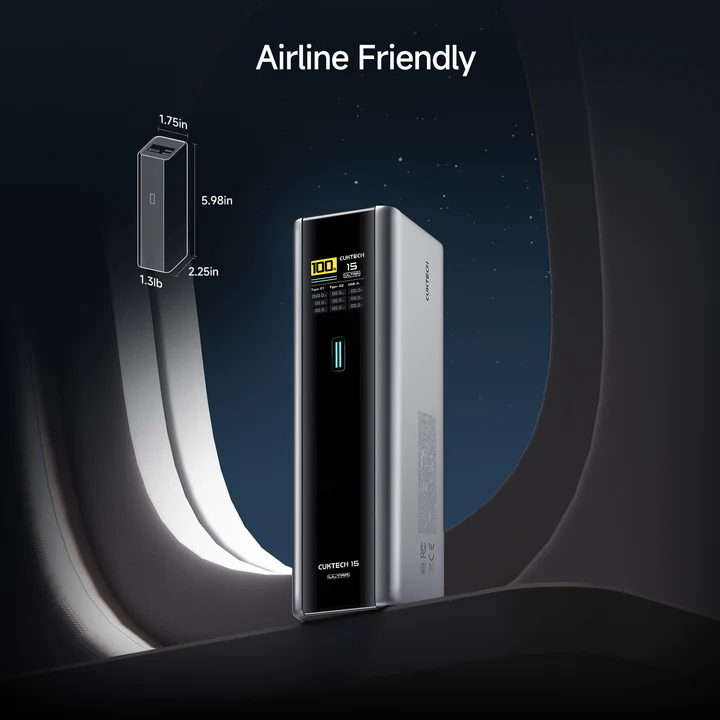

- Can be easily carried on airplanes for convenient travel.
- Runs cooler even at high power output thanks to its 4-layer battery cooling system.
- Internal heat sink structure made of aluminum alloy.
- Uses a thermal pad to dissipate heat.
- Reinforced with a 2050 square millimeter copper foil shield.
- Newly designed circuit board layout and heat dissipation direction.
- Monitors temperature over 180,000 times/hour.
- Safer and more premium with a cutting-edge design and high-grade materials.
- The housing is made of durable, non-flammable V0 grade plastic.
- The Y-shaped pattern provides a better grip when held.
- Compact size, similar in size to a soda can, ideal for portability.
- Supports power delivery for small devices in Low-Current Mode.
* Supports charging wireless headphones, smartwatches, and more.
- Great value with a 1-meter USB-C to USB-C 6A 240W charging cable.
* The charging cable is included in the product box.
- Safer and more reliable with 9 types of protection systems:
* Over-temperature protection
* Short-circuit protection
* Protection reset system
* Over-input current protection
* Over-input voltage protection
* Over-output voltage protection
* Over-battery current protection
* Over-output current protection
* Over-charging and over-discharging protection

[[Product Information]]
Brand: CUKTECH
Model: CUKTECH PB200U
Battery Type: Lithium-ion
Cell Capacity: 70.56Wh/72Wh 14.4V 4900mAh / 5000mAh
Rated Capacity: 12000mAh (5V/4A)
Input Port: USB-C x 2
Output Port: USB-A x 1 / USB-C x 2
Input
USB-C1: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-5A, 28V-5A
USB-C2: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
USB-C1 + USB-C2: 20V-5A + 20V-3.25A) 165W MAX
Output
USB-C1 : 5V-3A , 9V-3A , 12V-3A , 15V-3A , 20V-5A , 5-20V-6A , 28V-5A 140W MAX
USB-C2 : 5V-3A , 9V-3A , 12V-3A , 15V-3A , 20V-3.25A , 5-11V-5A , 5-20V-4.5A 90W MAX
USB-A : 5V-3A , 9V-3A , 5-11V-3A 33W MAX
Multiport Output
5V-4A (OUT1 5V-1.5A OUT2 5V-1.5A OUT3 5V-1A)
9V-9A (OUT1 9V-3A + OUT2 9V-3A + OUT3 9V-3A)
12V-6A (OUT1 12V-3A + OUT2 12V-3A)
15V-6A (OUT1 15V-3A + OUT2 15V-3A)
20V-9A (OUT1 20V-6A + OUT2 20V-3A)
Operating Temperature: 5°C - 35°C
Product Dimensions: 152 x 44.5 x 57.1 mm

[[Package Contents]]
1x CUKTECH PB200U
1x USB-C to USB-C Charging Cable
1x User Manual

 ----------------------------------------
